  5. Wallbox Copper SB - 7,4/22kW
Wallbox

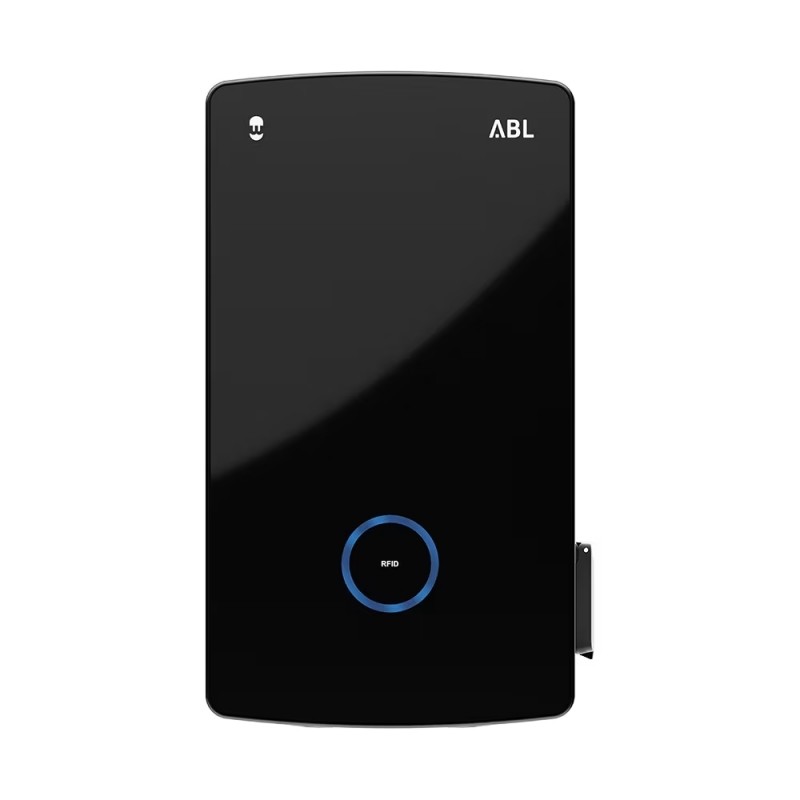

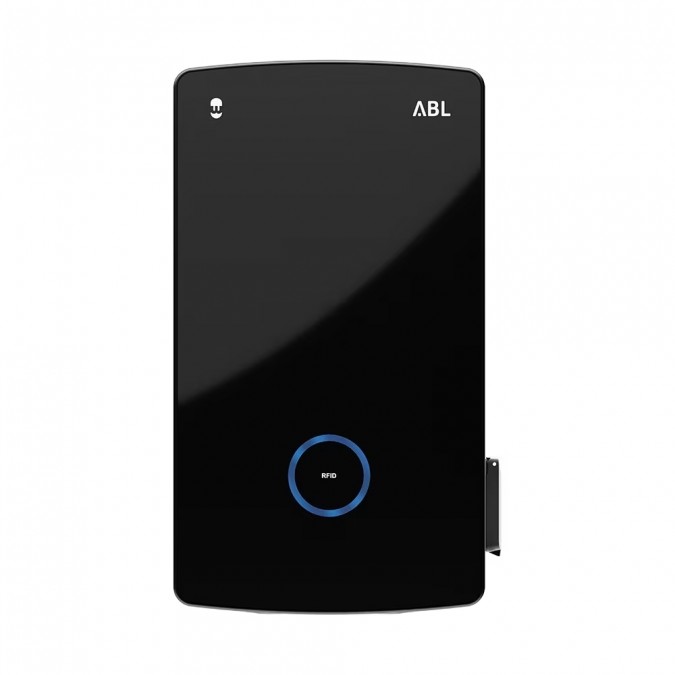

Wallbox Copper SB - 7,4/22kW View larger
Previous Next

Wallbox

Wallbox Copper SB - 7,4/22kW Wallbox®

1589,76€ tax incl.  -  (1324,80€ tax excl.)

Including 0,00€ for ecotax

Installation mécanique en 10 minutes
Diverses dispositions et améliorations en matière de câblage permettent des installations rapides.
Application de mise en service dédiée
Configuration guidée des chargeurs grâce à l’assistant d’installation de l’application.
Conception durable et performante
Technologie de pointe, la borne eM4 garantit la pérennité de votre solution de charge et sa conformité aux nouvelles normes de charge des véhicules électriques.

Available (delivery 4 to 10 days)

Livraison à domicileGratuite !
Paiement 3x 4x sans frais avec Oney®
Satisfait ou remboursé (jusque 14 jours pour changer d'avis*)
Model / TypeWallbox ABL em4
ChargerAC
Socket typeType 2S (CEI 62196-2)
Charging modeMode 3
Attached cable lengthpas de cable
DimensionsSingle : 516 × 306.5 × 145 mm, Twin : 516 × 428 × 145 mm
WeightSingle : 7.2 Kg, Twin : 10.5 Kg
Operating temperature-25 ºC à 40 ºC
Protection ratingIP55 / IK10
StandardsIEC 61851-1, IEC 61439-7 ACSEV, VDE-AR-N 4100
Manufacturer warranty2 years
Power supply typeSingle-phase (1P) / Three-phase (3P)
Supply voltage110-230V AC (1P) / 400 V AC (3P)
Maximum charging power7.4 kW (1P) / 22 kW (3P)
Charging currentUp to 32A
Blanking plateYes sur socket intégrée
Overvoltage categoryCAT III
Leakage current detectionincluded (DC 6mA)
Residual current protectionType A (included)
ConnectivityWi-Fi / Ethernet / 4G
Access protectionRFID / QR code / Application ABL
there is no reviews now
to be the first to review

6 other products in the same category: Bornes murales

Data sheet

Model / Type Wallbox ABL em4
Charger AC
Socket type Type 2S (CEI 62196-2)
Charging mode Mode 3
Attached cable length pas de cable
Dimensions Single : 516 × 306.5 × 145 mm
Twin : 516 × 428 × 145 mm
Weight Single : 7.2 Kg
Twin : 10.5 Kg
Operating temperature -25 ºC à 40 ºC
Protection rating IP55 / IK10
Standards IEC 61851-1
IEC 61439-7 ACSEV
VDE-AR-N 4100
Manufacturer warranty 2 years

Power supply type Single-phase (1P) / Three-phase (3P)
Supply voltage 110-230V AC (1P) / 400 V AC (3P)
Maximum charging power 7.4 kW (1P) / 22 kW (3P)
Charging current Up to 32A
Blanking plate Yes sur socket intégrée
Overvoltage category CAT III
Leakage current detection included (DC 6mA)
Residual current protection Type A (included)

Connectivity Wi-Fi / Ethernet / 4G
Access protection RFID / QR code / Application ABL
