  5. Wallbox Pulsar Plus 22kW
Wallbox

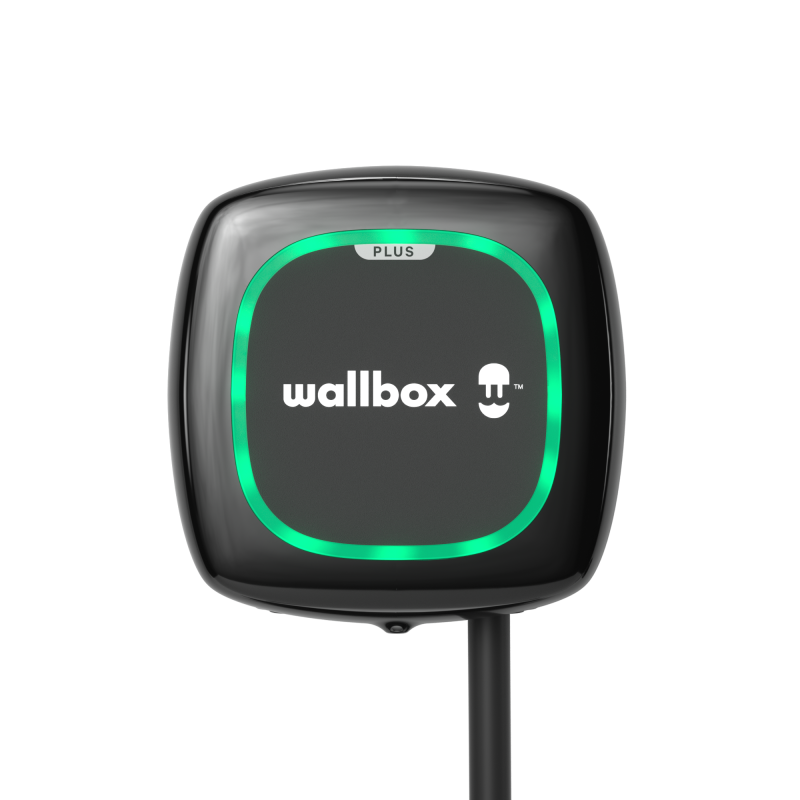

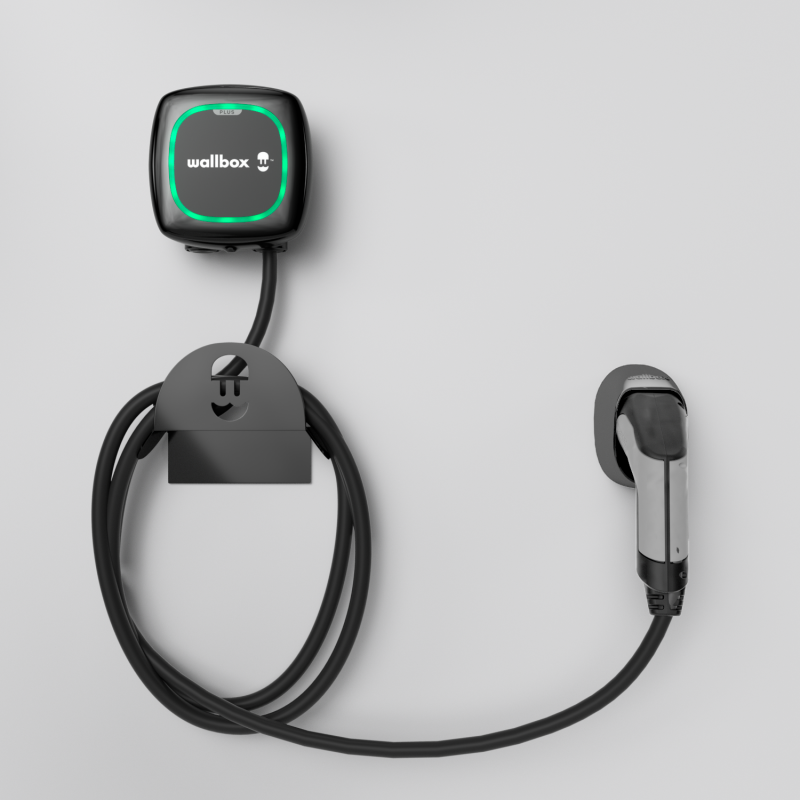

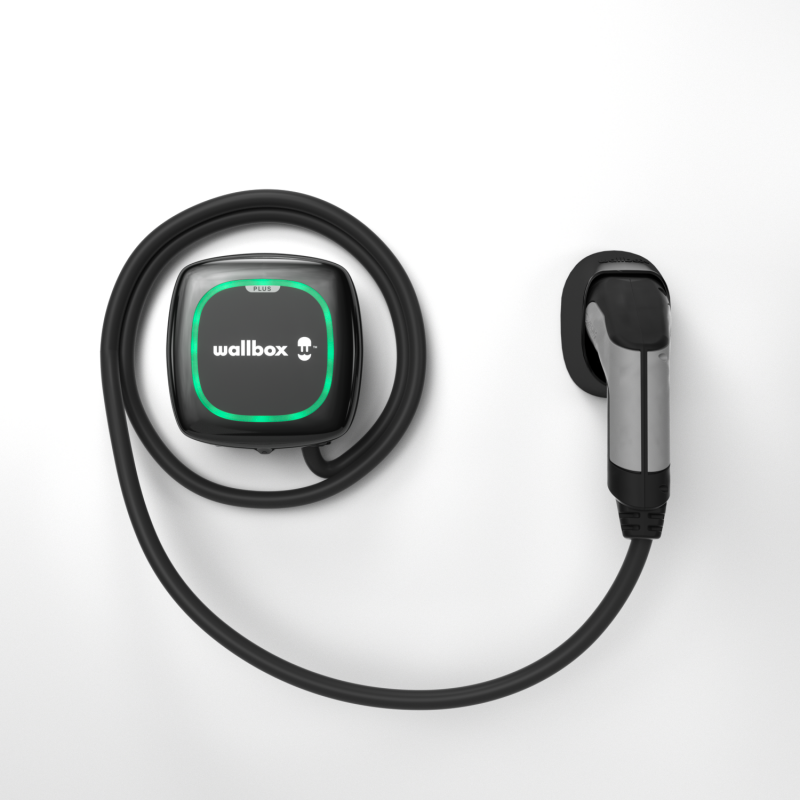

Wallbox Pulsar Plus 22kW View larger
Previous Next

Wallbox

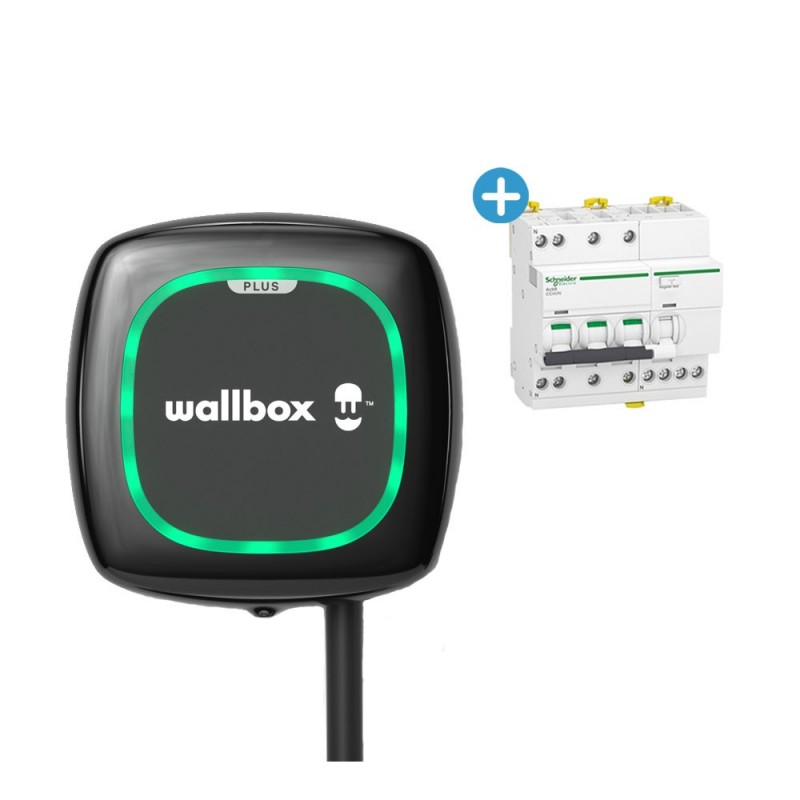

PLP1-0-2-4-9-002/PROTEC3P

Wallbox Pulsar Plus 22kW Wallbox®

1097,40€ tax incl.  -  (914,50€ tax excl.)

Available (delivery 4 to 10 days)

Oups ! Cet article n'est pas disponible à la vente actuellement.


Livraison à domicileGratuite !
Paiement 3x 4x sans frais avec Oney®
Satisfait ou remboursé (jusque 14 jours pour changer d'avis*)
Model / TypeWallbox Pulsar Plus

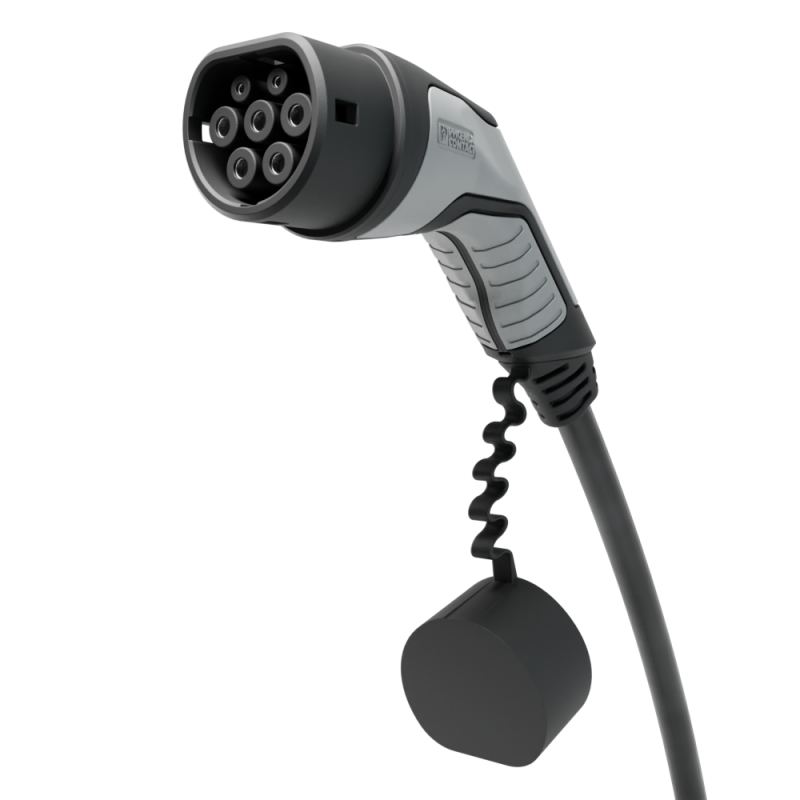

Socket typeType 2
Charging modeMode 3

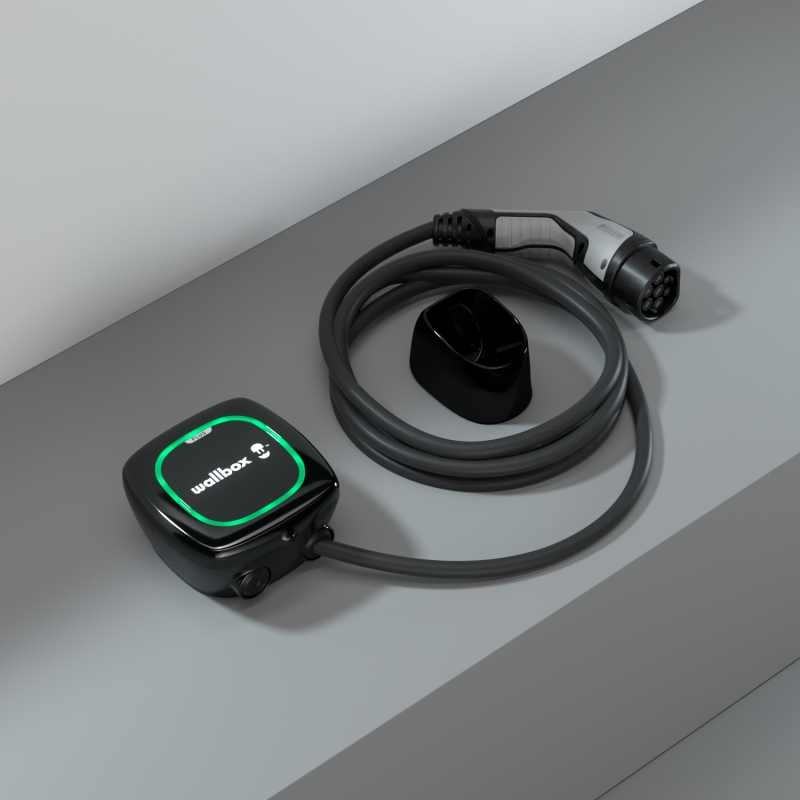

Attached cable length5 metres

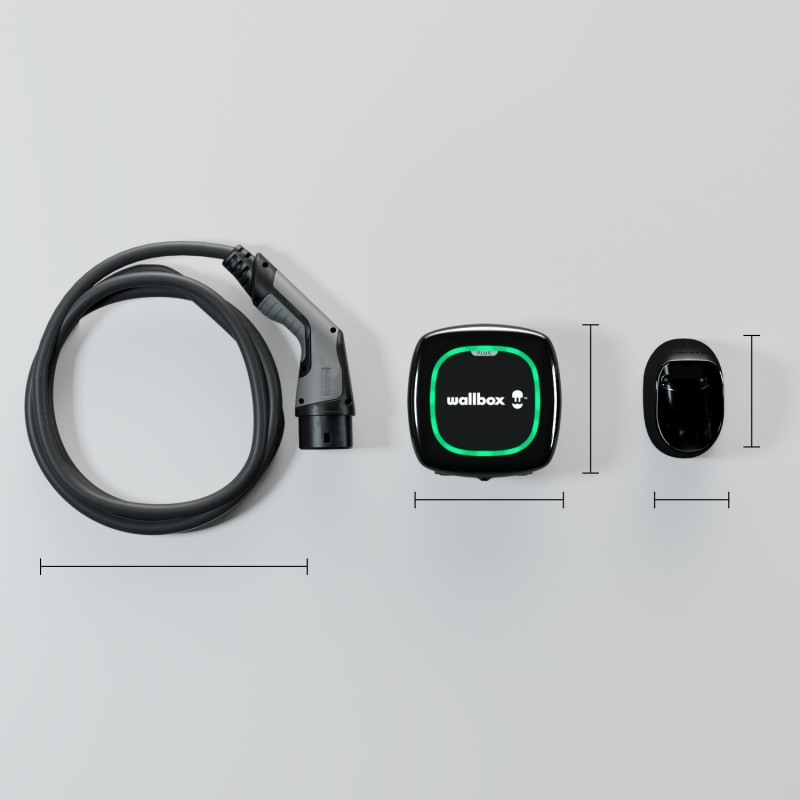

Dimensions166 x 163 x 82 mm (without le cable))
Operating temperature-25 ºC à 40 ºC
Protection ratingIP54 / IK08
StandardsCE - EC 61851-1 - IEC 61851-22 - IEC 62196-2
Manufacturer warranty2 years
Power supply typeSingle-phase (1P) / Three-phase (3P)
Supply voltage110-230V AC (1P) / 400 V AC (3P)
Maximum charging power7.4 kW (1P) / 22 kW (3P)
Charging currentAdjustable de 6 à 32A
Blanking plateNo
Overvoltage categoryCAT III
Leakage current detectionincluded (DC 6mA)
Residual current protectionType A / A-SI (included)
ConnectivityWi-Fi / Bluetooth
Access protectionWallbox App / Portail myWallbox

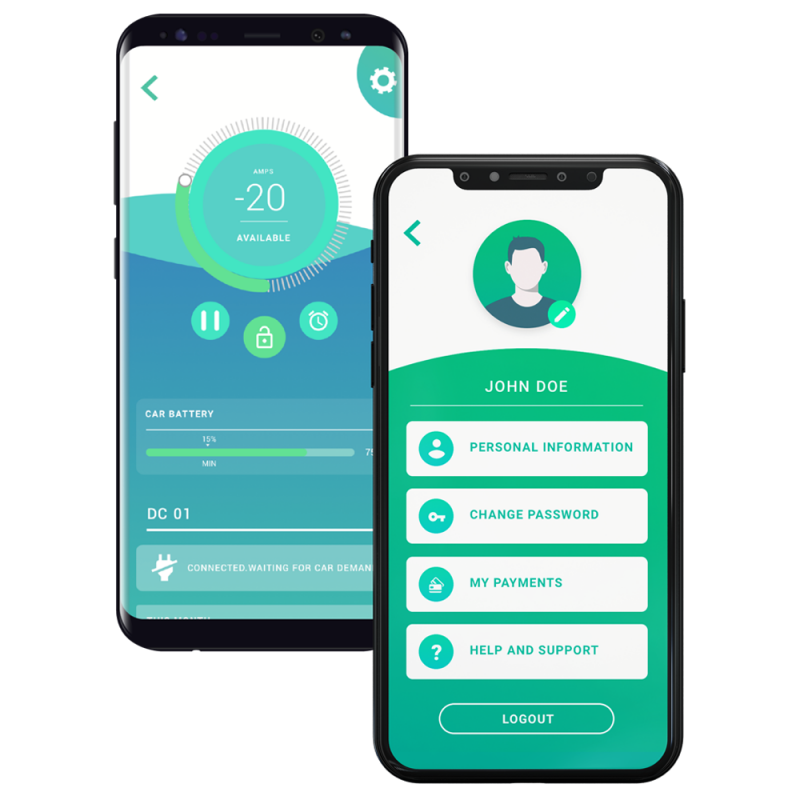

User interfaceWallbox App / Portail myWallbox
there is no reviews now
to be the first to review

Data sheet

Model / Type Wallbox Pulsar Plus
Socket type Type 2
Charging mode Mode 3
Attached cable length 5 metres
Dimensions 166 x 163 x 82 mm (without le cable))
Operating temperature -25 ºC à 40 ºC
Protection rating IP54 / IK08
Standards CE - EC 61851-1 - IEC 61851-22 - IEC 62196-2
Manufacturer warranty 2 years

Power supply type Single-phase (1P) / Three-phase (3P)
Supply voltage 110-230V AC (1P) / 400 V AC (3P)
Maximum charging power 7.4 kW (1P) / 22 kW (3P)
Charging current Adjustable de 6 à 32A
Blanking plate No
Overvoltage category CAT III
Leakage current detection included (DC 6mA)
Residual current protection Type A / A-SI (included)

Connectivity Wi-Fi / Bluetooth
Access protection Wallbox App / Portail myWallbox
User interface Wallbox App / Portail myWallbox
