  5. Wallbox Copper SB - 7,4/22kW
Wallbox

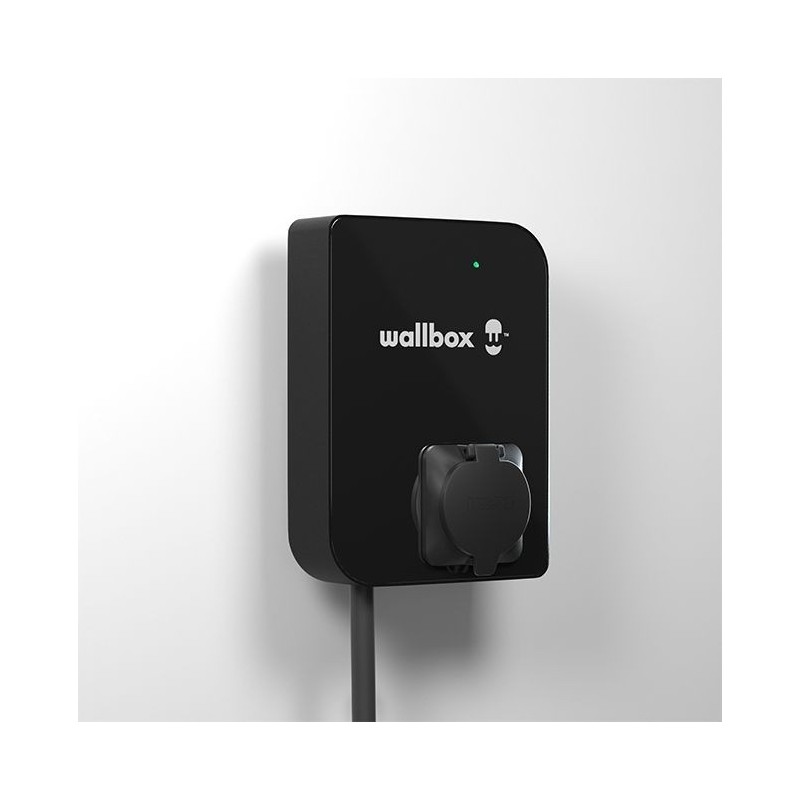

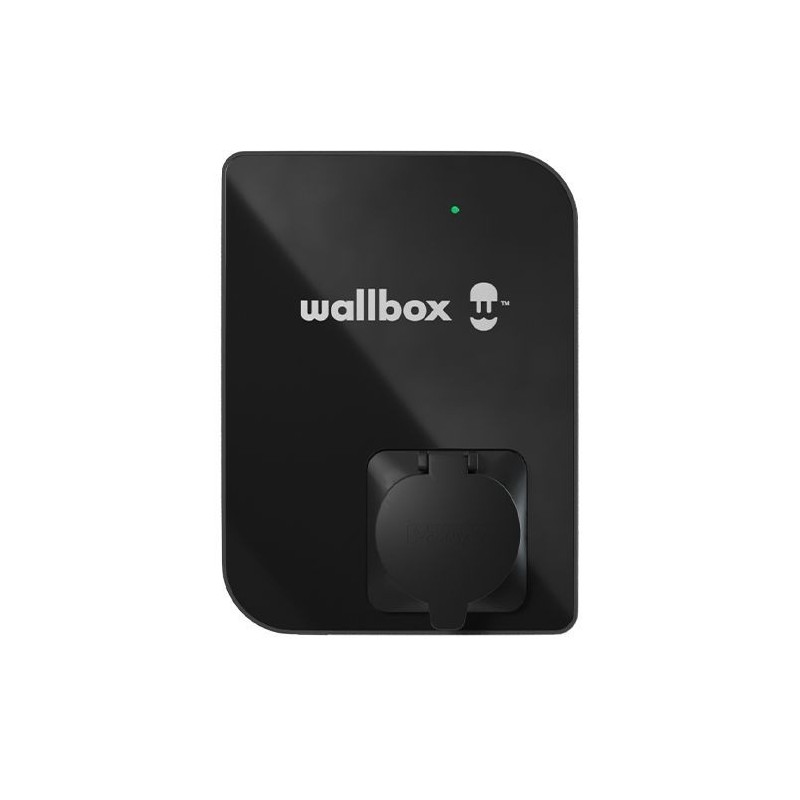

Wallbox Copper SB - 7,4/22kW View larger
Previous Next

Wallbox

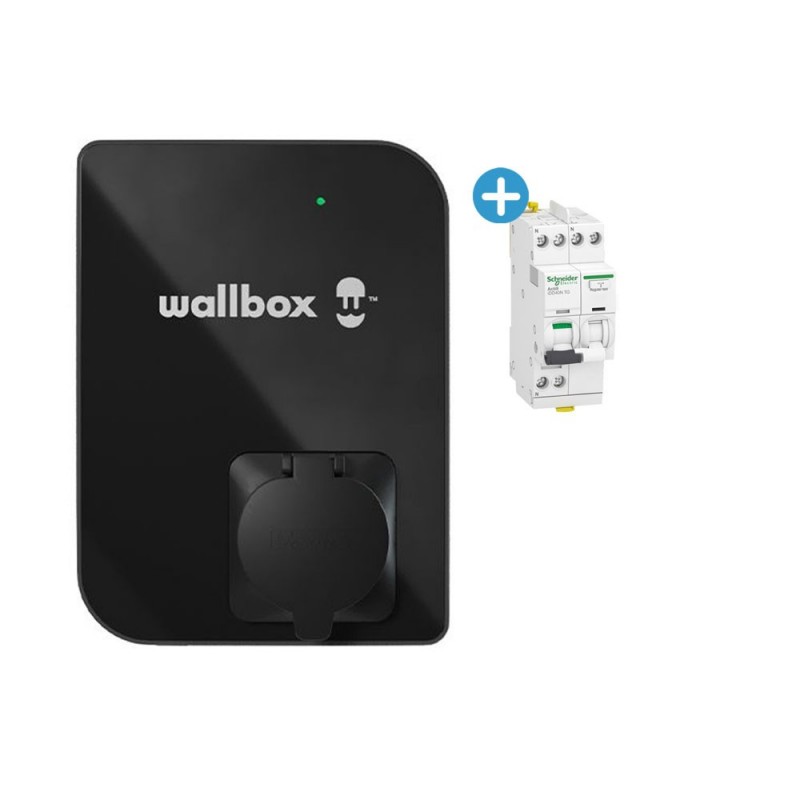

CPB1-W-2-4-8-002/PROTEC1P

Wallbox Copper SB - 7,4/22kW Wallbox®

1148,00€ tax incl.  -  (956,66€ tax excl.)

This product is no longer in stock

Notify me when available



Oups ! Cet article n'est pas disponible à la vente actuellement.


Livraison à domicileGratuite !
Paiement 3x 4x sans frais avec Oney®
Satisfait ou remboursé (jusque 14 jours pour changer d'avis*)
Model / TypeWallbox Copper SB
ChargerAC
Socket typeType 1 / Type 2S
Charging modeMode 3
Attached cable lengthpas de cable
Dimensions260x192x113 mm
Weight2 Kg
Operating temperature-25 ºC à 40 ºC
Protection ratingIP54 / IK08
StandardsCE - EC 61851-1 - IEC 61851-22 - IEC 62196-2
Manufacturer warranty2 years
Power supply typeSingle-phase (1P) / Three-phase (3P)
Supply voltage110-230V AC (1P) / 400 V AC (3P)
Maximum charging power7.4 kW (1P) / 22 kW (3P)
Charging currentAdjustable de 6 à 32A
Blanking plateYes sur socket intégrée
Overvoltage categoryCAT III
Leakage current detectionincluded (DC 6mA)
Residual current protectionType A / A-SI (included)
ConnectivityWi-Fi / Ethernet / Bluetooth
Access protectionWallbox App / RFID / Portail myWallbox

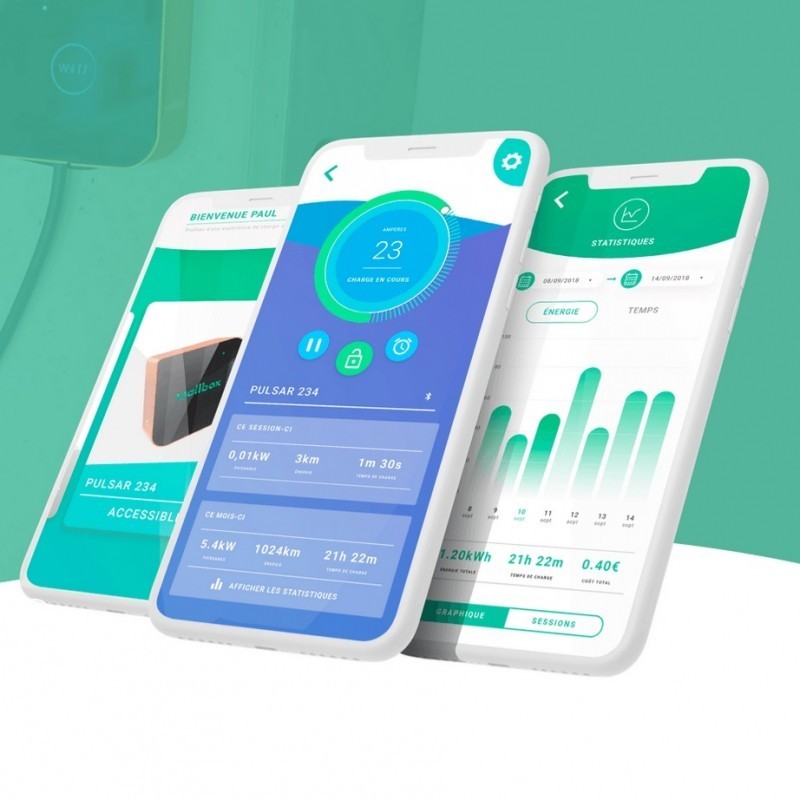

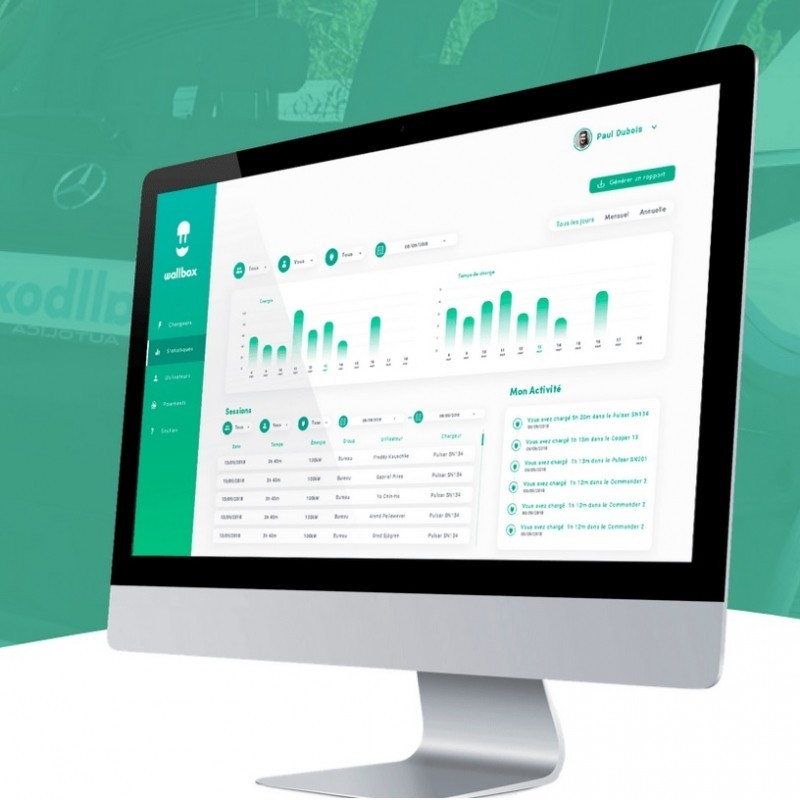

User interfaceWallbox App / Portail myWallbox
there is no reviews now
to be the first to review

Data sheet

Model / Type Wallbox Copper SB
Charger AC
Socket type Type 1 / Type 2S
Charging mode Mode 3
Attached cable length pas de cable
Dimensions 260x192x113 mm
Weight 2 Kg
Operating temperature -25 ºC à 40 ºC
Protection rating IP54 / IK08
Standards CE - EC 61851-1 - IEC 61851-22 - IEC 62196-2
Manufacturer warranty 2 years

Power supply type Single-phase (1P) / Three-phase (3P)
Supply voltage 110-230V AC (1P) / 400 V AC (3P)
Maximum charging power 7.4 kW (1P) / 22 kW (3P)
Charging current Adjustable de 6 à 32A
Blanking plate Yes sur socket intégrée
Overvoltage category CAT III
Leakage current detection included (DC 6mA)
Residual current protection Type A / A-SI (included)

Connectivity Wi-Fi / Ethernet / Bluetooth
Access protection Wallbox App / RFID / Portail myWallbox
User interface Wallbox App / Portail myWallbox
