  5. Disjoncteur différentiel 230V~ - 20A type A-SI 30mA - courbe C
Schneider Electric

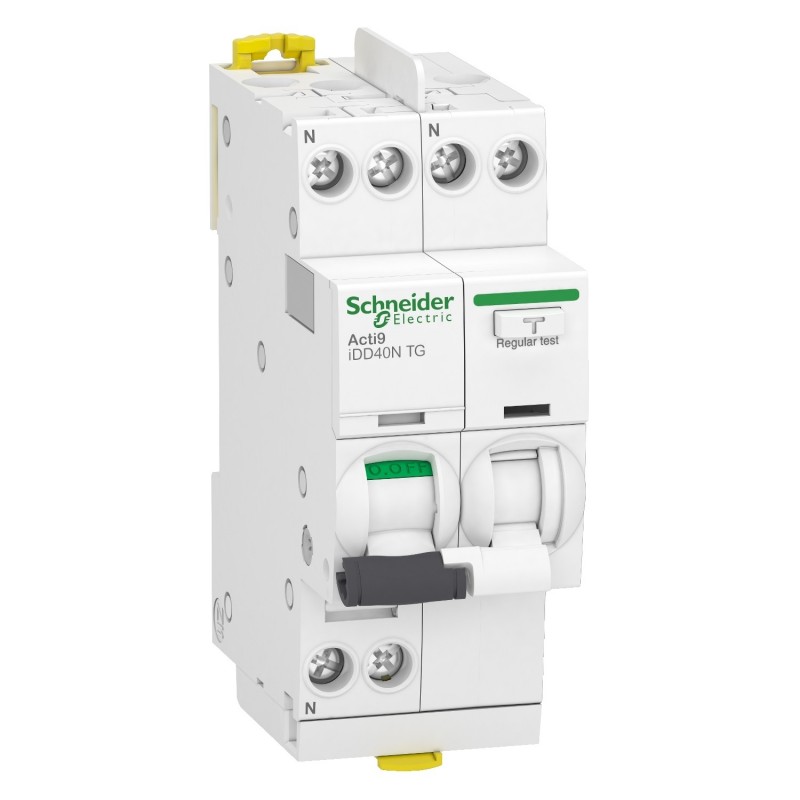

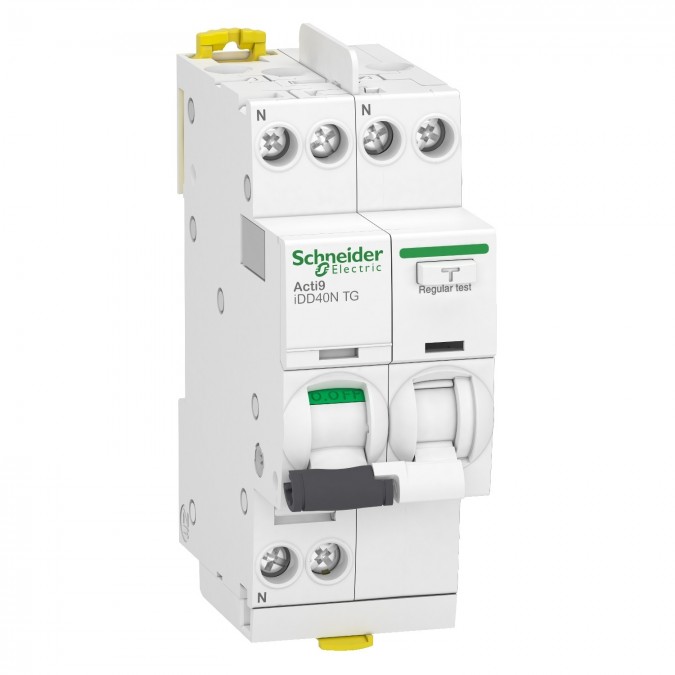

Disjoncteur différentiel 230V~ - 20A type A-SI 30mA - courbe C View larger

Schneider Electric

A9DX3640

Disjoncteur différentiel 230V~ - 20A type A-SI 30mA - courbe C Schneider Electric®

199,00€ tax incl.  -  (165,83€ tax excl.)

In stock (24h delivery)

Livraison à domicile (offerte dès 300€)10,00€
Paiement 3x 4x sans frais avec Oney®
Satisfait ou remboursé (jusque 14 jours pour changer d'avis*)
Model / TypeDisjoncteur différentiel 1P+N
FinishWhite
Installation typeRail DIN
Charging station typeBorne à vis
Number of modules (DIN rail)2
Dimensions(LxhxP) 36 mm x 91 mm x 73 mm
Weight215 g
Operating temperature-25 ºC à 60 ºC
Protection ratingIP20
StandardsEN/CEI 60947-2, EN/CEI 61009-2-1
CertificationsCE
Manufacturer warranty2 years
Power supply typeSingle-phase (2P)
Supply voltage230V AC
Breaking capacity10 kA
Rated current40A
Rated residual current30 mA
Residual current typeType A SI (ex type F/HPI)

Customer reviews

Reviews about this product
Show attestation
0
1★
0
2★
0
3★
0
4★
3
5★
10/10


Based on 3 reviews

  • Jean-Marie B.
    Published 24/02/2024 à 15:28 (Order date: 18/01/2024)
    5

    Conforme à mes attentes.

  • Jacques P.
    Published 27/08/2023 à 12:20 (Order date: 26/07/2023)
    5

    pas encore monté

  • Thierry L.
    Published 11/08/2022 à 17:57 (Order date: 31/07/2022)
    5

    Pas encore testé



1 other product in the same category: Protections électriques

Data sheet

Model / Type Disjoncteur différentiel 1P+N
Finish White
Installation type Rail DIN
Charging station type Borne à vis
Number of modules (DIN rail) 2
Dimensions (LxhxP) 36 mm x 91 mm x 73 mm
Weight 215 g
Operating temperature -25 ºC à 60 ºC
Protection rating IP20
Standards EN/CEI 60947-2
EN/CEI 61009-2-1
Certifications CE
Manufacturer warranty 2 years

Power supply type Single-phase (2P)
Supply voltage 230V AC
Breaking capacity 10 kA
Rated current 40A
Rated residual current 30 mA
Residual current type Type A SI (ex type F/HPI)
